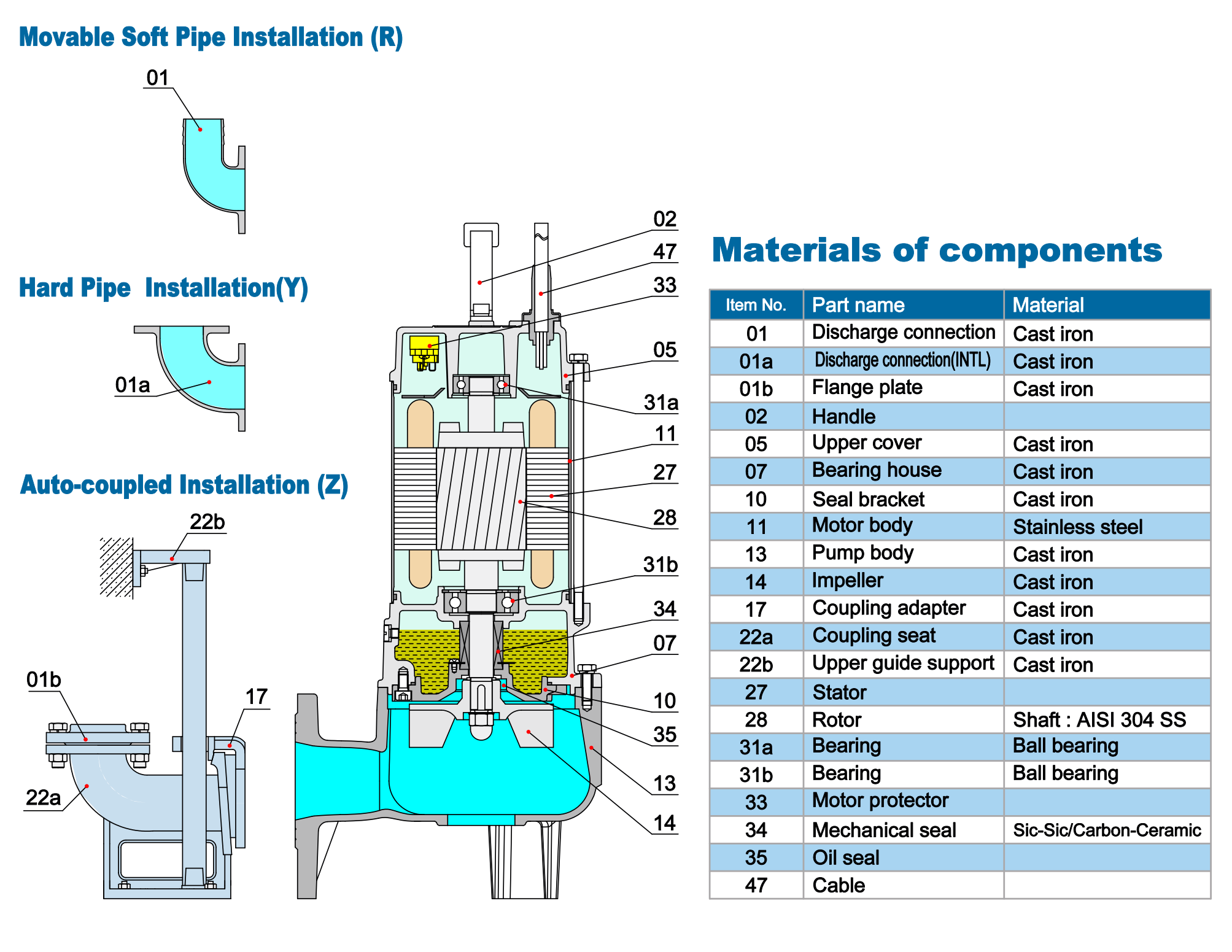

Structure and characteristics

U pump is a multi-purpose pump with a vortex impeller. The impeller used mainly in volute pumps. Vortex impellers pump water by the eddy flow caused by interaction with the casing, which prevents internal clogging by solids and fibrous matter.

Application

The U series is especially useful for pumping waste water containing large-particle matters of construction site and mine.

Specification

Insulation class: F

Protection class: IP68

Water temperature: up to 40℃

PH: 6-10

Power supply: single phase 220V±10%, 50Hz

                        single phase 220V±10%, 60Hz

                        three phase 380V±10%, 50Hz

                      three phase 380V±10%, 60Hz

Motor protection: built in

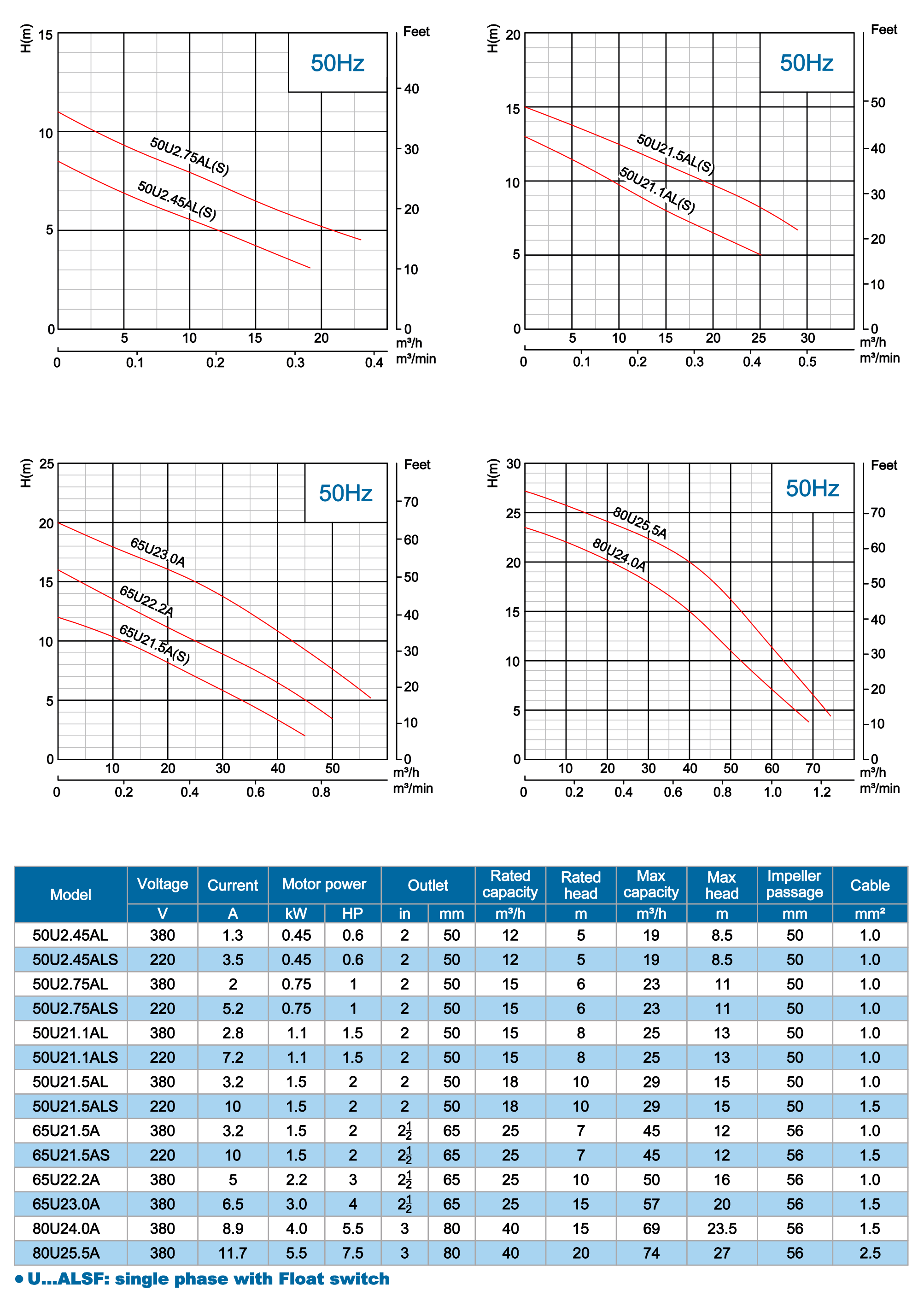

Capacity: up to 74m³/h

Head: up to 27m

Max water depth: 10m

Cable Length: 8m
